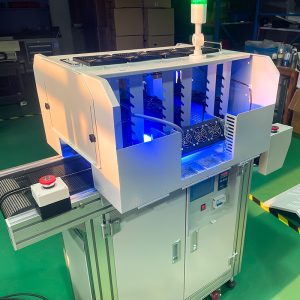

mini desktop UV curing conveyor

Futansi uv curing conveyor systems can be used for UV glue, ink, varnish, paint, coating and other photosensitive materials curing role, so that its surface glossy and bright, with good weather resistance, water resistance, friction resistance, acid and alkali resistance and other high-intensity protection role. led uv light source application areas are wide, suitable for ink printing, industrial products fixed, specific applications can be referred to the following:

1、optical communication industry
active devices, passive device packaging, optical fiber optical cable coating curing bonding;

2、photovoltaic new energy
photovoltaic chips, lithium battery module curing;

3、semiconductor materials
wafer chips, uv film debonding;

4、medical devices
medical catheters, syringes, endoscopes, infusion tubes and other medical devices sealing;

5、3C electronics
mobile phone parts, digital camera accessories, motor components, semiconductor chips, sensors, encoders, etc.;

6、PCB circuit board
electronic components fixed, core circuit potting, chip protection, antioxidant coating protection;

7、optical parts
lens modules, optical lenses, infrared night vision assembly bonding;

8、liquid crystal display
surface edge encapsulation.

9、laboratory materials
polymer chemistry, semiconductor materials light curing;

10、ink printing
screen printing label printing.

1、High quality LED lamp beads
With the advantages such as high energy, strong light and long service life;

2、Single-band LED ultraviolet light source
common wavelengths of UV light curing conveyor is 365nm, 385nm, 395nm, 405nm, no thermal radiation;

3, UVLED curing light source without heat radiation
UV curing conveyors using high power LED lamp beads, emitting 365/385/395/405nm single-band UV light source, no infrared wavelength, the irradiated substrate surface temperature rise of no more than 5 ℃, no thermal radiation damage to the substrate surface, suitable for heat-sensitive material surface drying;

4、Multi-channel working mode
Standard with a UV Curing Systems, according to the actual use of the situation, choose 1-4 irradiation head alone or synchronous work, no need to repeat the purchase of light source equipment, effective cost savings;

5、Low power consumption
Desktop conveyor UV curing systems through the led chip for electrical energy & mdash; & mdash; light energy conversion, less energy loss, low power consumption, about one tenth of the traditional UV mercury lamp, can save a lot of electricity consumption each year;

6、Clean and environmental protection without pollution
UV conveyor Belt conVey LED does not contain mercury metal harmful substances, does not produce ozone when used, belongs to a clean and environmentally friendly energy;

7, small size, small footprint
UV curing conveyor covers an area far less than the traditional UV mercury lamp, can be customized shape size and irradiation area, the average size of about 1/10 of the UV lamp type, light weight, small physical strength, suitable for use in different working environments;;

8、Long service life
UV Enlengthing Conveyor Curing Machines emits ultraviolet light source through LED lamp beads, its use time is more than 20,000h on average, compared to the traditional UV mercury lamp service life (average use time is about 800h) is much longer, can instantly light up/off led ultraviolet light source, not affected by switch closure;
