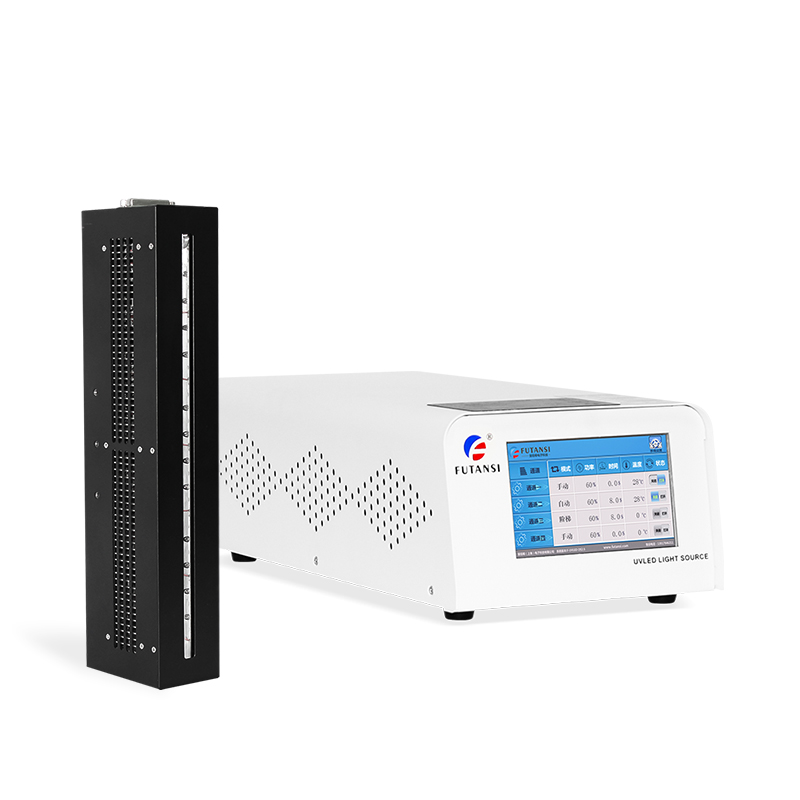

Linear UV LED curing light 350x10mm

Futansi linear UV LED lamps can be used for UV adhesive, UV ink, UV varnish, UV paint, UV coating and other photosensitive materials curing role, so that its surface glossy and bright, with good weather resistance, water resistance, friction resistance, acid and alkali resistance and other high-intensity protection role. led uv light source application areas are wide, suitable for ink printing, industrial products fixed, specific applications can be referred to the following:

1、optical communication industry
active devices, passive device packaging, optical fiber optical cable coating curing bonding;

2、photovoltaic new energy
photovoltaic chips, lithium battery module curing;

3、semiconductor materials
wafer chips, uv film debonding;

4、medical devices
medical catheters, syringes, endoscopes, infusion tubes and other medical devices sealing;

5、3C electronics
mobile phone parts, digital camera accessories, motor components, semiconductor chips, sensors, encoders, etc.;

6、PCB circuit board
electronic components fixed, core circuit potting, chip protection, antioxidant coating protection;

7、optical parts
lens modules, optical lenses, infrared night vision assembly bonding;

8、liquid crystal display
surface edge encapsulation.

9、laboratory materials
polymer chemistry, semiconductor materials light curing;

10、ink printing
screen printing label printing.

1、Imported LED beads
Advantages of UV LED curing systems such as high energy, strong light and long service life;

2、Single-wavelength LED ultraviolet light source
UV curing surface light source common output of 365nm, 385nm, 395nm, 405nm, no thermal radiation;

3, Air-cooled UV-LED array with high intensity light source with low heat radiation
LED UV systems using high power LED lamp beads, emitting 365/385/395/405nm single-band UV light source, no infrared wavelength, the irradiated substrate surface temperature rise of no more than 5 ℃, no thermal radiation damage to the substrate surface, suitable for heat-sensitive material surface drying;

4、Multi-channel working mode
Standard with a LED UV curing systems, according to the actual use of the situation, choose 1-4 irradiation head alone or synchronous work, no need to repeat the purchase of light source equipment, effective cost savings;

5、Low power consumption
Through the led chip for electrical energy; light energy conversion, less energy loss, low power consumption, about one tenth of the traditional UV mercury lamp, can save a lot of electricity consumption each year;

6、Clean and environmental protection without pollution
LED curing systems does not contain mercury metal harmful substances, does not produce ozone when used, belongs to a clean and environmentally friendly energy;

7, small size, small footprint
UV curing systems cover an area far less than the traditional UV mercury lamp lamp, can be customized shape size and irradiation area, the average size of about 1/10 of the UV lamp type, light weight, small physical strength, suitable for use in different working environments;

8、Long service life
UVLED emits ultraviolet light source through LED beads, its use time is more than 20,000h on average, compared to the traditional UV mercury lamp service life (average use time is about 800h) is much longer, can instantly light up/off led ultraviolet light source, not affected by switch closure;
