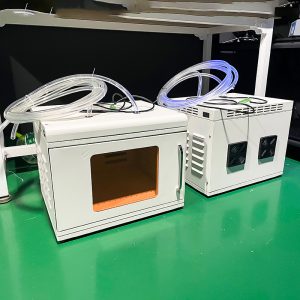

Vacuum UV Curing Oven with LED curing light 200x200mm
Nitrogen UV Curing Chamber- Wave365/385/395/405nm(Customised)
- ApplicationsUV glue/resin/ink curing
- Luminous size20mm-500mm long, 20-500mm wide
- CoolingWater Cooling
- Light intensity10-10000mW/cm²
Related product literature downloads

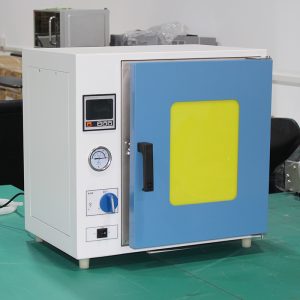

Brief description of vacuum uv oven
A nitrogen vacuum UV curing oven is a specialized equipment designed for the precise curing of ultraviolet (UV) curable materials in a controlled environment.
The oven utilizes UV light in the presence of nitrogen within a vacuum-sealed chamber to facilitate the curing process. This controlled environment ensures that the UV-curable materials cure efficiently and uniformly.
The introduction of a nitrogen atmosphere helps to create an oxygen-free environment. This is crucial during the curing process, as oxygen can interfere with the UV curing reactions. The nitrogen atmosphere enhances the efficiency and reliability of the curing process.
The oven is equipped with a vacuum-sealed chamber to remove air and other gases, creating a controlled and stable environment. This vacuum environment aids in preventing oxidation and maintaining consistent curing conditions.
The design of the oven ensures uniform exposure of UV light to the materials being cured. This uniformity is critical for consistent curing results, minimizing variations in the cured material’s properties.
Product Applications
Futansi UV curing ovens can be used for UV glue, ink, varnish, paint, coating and other photosensitive materials curing role, so that its surface glossy and bright, with good weather resistance, water resistance, friction resistance, acid and alkali resistance and other high-intensity protection role. UV curing LED oven chamber application areas are wide, suitable for ink printing, industrial products fixed, specific applications can be referred to the following:
1、optical communication industry
active devices, passive device packaging, optical fiber optical cable coating curing bonding;
2、photovoltaic new energy
photovoltaic chips, lithium battery module curing;
3、semiconductor materials
wafer chips, uv film debonding;
4、medical devices
medical catheters, syringes, endoscopes, infusion tubes and other medical devices sealing;
5、3C electronics
mobile phone parts, digital camera accessories, motor components, semiconductor chips, sensors, encoders, etc.;

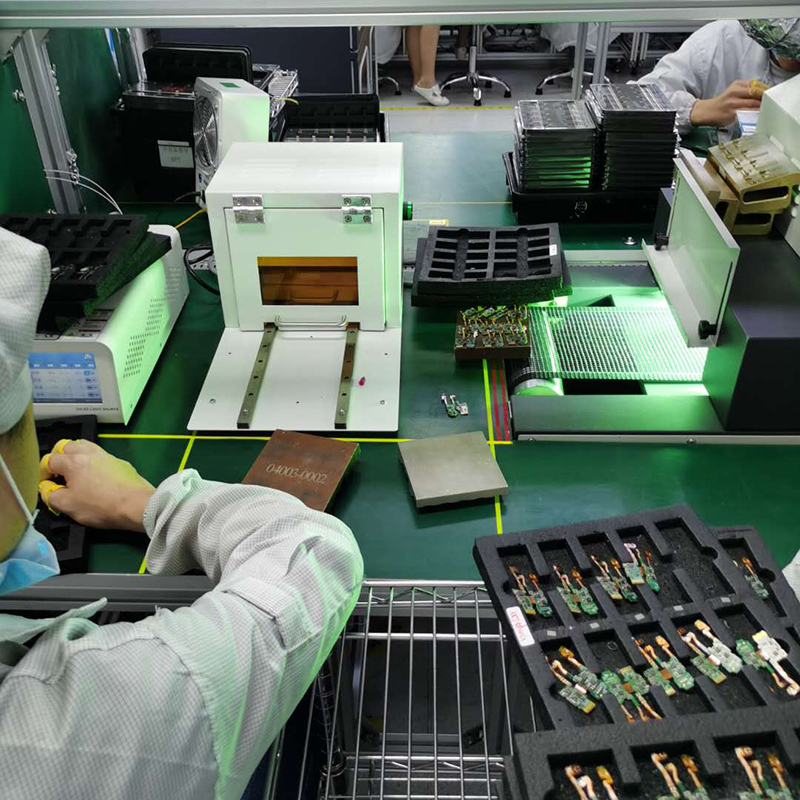

6、PCB circuit board
electronic components fixed, core circuit potting, chip protection, antioxidant coating protection;
7、optical parts
lens modules, optical lenses, infrared night vision assembly bonding;
8、liquid crystal display
surface edge encapsulation.
9、laboratory materials
polymer chemistry, semiconductor materials light curing;
10、ink printing
screen printing label printing.
Product Advantages
1、High quality LED lamp beads
Advantages such as high energy, strong light and long service life;
2、Single-band LED ultraviolet light source
common wavelengths of UV curing chamber is 365nm, 385nm, 395nm, 405nm, no thermal radiation;
3, UVLED curing light source without heat radiation
UV LED curing oven using high power LED lamp beads, emitting 365/385/395/405nm single-band UV light source, no infrared wavelength, the irradiated substrate surface temperature rise of no more than 5 ℃, no thermal radiation damage to the substrate surface, suitable for heat-sensitive material surface drying;
4、Multi-channel working mode
Standard with a UVLED light source equipment, according to the actual use of the situation, choose 1-4 irradiation head alone or synchronous work, no need to repeat the purchase of light source equipment, effective cost savings;
5、Low power consumption
UV oven through the led chip for electrical energy & mdash; & mdash; light energy conversion, less energy loss, low power consumption, about one tenth of the traditional UV mercury lamp, can save a lot of electricity consumption each year;
6、Clean and environmental protection without pollution
LED UV ovens does not contain mercury metal harmful substances, does not produce ozone when used, belongs to a clean and environmentally friendly energy;
7, small size, small footprint
UVLED curing chambers covers an area far less than the traditional UV mercury lamp lamp, can be customized shape size and irradiation area, light weight, small physical strength, suitable for use in different working environments;
8、Long service life
UVLED emits ultraviolet light source through LED lamp beads, its use time is more than 20,000h on average, compared to the traditional UV mercury lamp service life (average use time is about 800h) is much longer, can instantly light up/off led ultraviolet light source, not affected by switch closure;
NO. | Parts | Items | Technique Data |
1 | Controller UVSF81T | Voltage | 220V |
2 | MODEL SIZE | 412X264X142(mm) | |
3 | Cooling mode | Air-Cooled | |
4 | Control Method | On-screen touch/pedal /RS232/485 communication | |
5 | Adjustable range of irradiationpower | 10%-100% adjustable | |
6 | irradiation swelling model | Manual: Steady on after startup | |
7 | Automatic: Set irradiation countdown time (0.1-999.9s) | ||
8 | Step: Achieve step irradiation (1-20 steps) | ||
9 | Loop ladder: single/infinite | ||
10 | traffic control | RS232 serial port, 485: data read and write, LED switchand parameter control | |
11 | I\O interface LED switch control and running stateoutput | ||
12 | Irradiation headSFHD-200200 | heat-dissipating method | air cooling |
13 | wavelength coverage | 365±5nm | |
14 | External structural dimension | 230*230*100mm | |
15 | Light point size | 200x200mm | |
16 | Suggested range | 15-20 (mm) | |
17 | exposure intensity (MAX) | 1000 mw/c ㎡(FTIU500 Illuminometer measurement data) | |
18 | Uniformity of irradiation intensity | 10%, homogeneity=( (Max-Min)/(Max +Min)×100% ) | |
19 | working life | 20000 hour (Constant temperature 20±1℃, constanthumidity 50±3%, attenuation about 25%) | |
20 | Curing Oven | Overall dimensions | 450X450X370 mm |
21 | Product placement size | 360X310 mm(Width x DEEP) | |
22 | power cord | cable | 2m |
23 | connecting line | cable | 2m |
24 | electric power | Total electrical power of eachcomponent | 1300w |
25 | Optional functions | on-line monitoring | None |
26 | Optional functions | Radiosity | None |
Download support
We support the download of relevant product manuals in PDF format, if you need special customized products, please contact our customer service by phone or email on the right
